Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: SanWei
  • Model Number: SW-6060
  • Voltage: 220v/Hz or 380v/Hz
  • Power(W): 1.5KW
  • Dimension(L*W*H): 600*600*100mm
  • Weight: 500kg
  • Certification: CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • spindle power: 1.5KW constant power spindle
  • Control system: Nc studio system/DSP
  • Driver system: stepper motor
  • Guide rail: Taiwan HIWIN linear square guide rail
  • Transmission: ball screw
  • Case: Independent control cabinet
  • Software: Type3/Artcam/Castmate/Proe/UG/Artgrave etc.
  • Inverter: Fuling inverter
  • Table structure: T-slot tablle

Packaging & Delivery

Packaging Details 1.Free fumigation standard export plywood case outside with upwards, rain-proof etc.
2.Shipping marks stamped on the surface of the plywood case.
Delivery Time Shipped in 7 days after payment
Product Description

Product Application


This Cheap Small Mini Metal CNC Milling Machine, is an industrial metal engraving drilling and milling machine, widely used in soft metal coin products moulding, machining, marking, routing, embossing, engraving metal advertising signage in Aluminum, Stainless Steel, Magnesium, Brass, Zinc etc, such as Aluminum nameplate, Copper Electrode Mould, stainless steel plaques, awards trophies, Metallic Bookmarks|Book Mark, brass, copper plate, magnisium plate, magnesium board mold, etc. Widely applicated in carving injection mold, Die, Die metal, Metal coining die, glass, etc.
This CNC Milling and Engraving Machine is suitable for precision products, copper electrodes, precision die moulds, bronzing moulds, plastic dripping moulds, high frequency moulds, hot cutting moulds, small moulds' lettering and minitype injection moulds' machining.
It is widely used in precision Automobile Components, Aerospace Components, Small Moulds and Dies, Copper Electrodes, Graphite Electrodes, Reliefs, Coining Dies and Medallions, Embossing and Hot Foil Stamps, Steel and Brass Stamps, Rotary Number Punches, Control Panels, Rubber Stereos, Bottle Moulds, Tablet Punches, Watch Cases, Shoe Sole Machining, Jewelry Industry- Dies & Ornaments, Part Number Engraving on Industrial Components, Medical Components, Dental Inserts, etc.

Main Features

 It is used for the engraving and processing of small infection molds, anodizing (the milling, cutting and engraving of copper, graphite, and silver and tungsten alloy), watch and clock parts, pressing molds, eyeglasses part molds, letter printing wheels, button molds, zipper and zipper head molds, shoe sole molds, key and lock molds, gilding molds, lace molds, golf club head faces & heels, golf club grip molds, relief and relief molds, embossing rolls, lost-wax molds, powder metallurgy molds, die casting molds, penholders, control panels (acrylic, aluminum, brass, steel, etc.), grinder-use optical projection film, precision drilling, precision miniatures, badges, name plates, handicrafts, keyboard molds, stationery, precision parts, and plane and arc surfaces.

Technical Parameters
X, Y, Z Traveling Area
600*600*100mm
Table Structure
T-slot table
X Y Transmission
ball screw
Z Transmission
TBI Ball Screw
X Y Z Guide rail
Taiwan HIWIN Square Rail
Spindle Power
1.5kw constant power spindle
Max.Spindle Speed
24000 rpm/min
Max. Traveling Speed
10m/min
Max. Working Speed
6m/min
Processing Accuracy
±0.025mm
Reposition Accuracy
≤0.025mm
Driving System
chuangwei drivers
Command Language
G Code
Control System
NCSTUDIO
Net Weight/Gross Weight
500KGS / 800KGS
Package Dimension
1000*1000*800mm

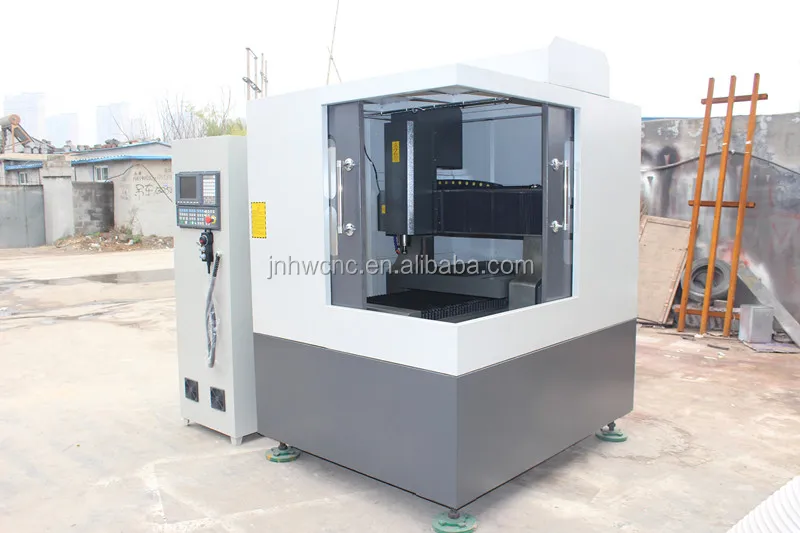

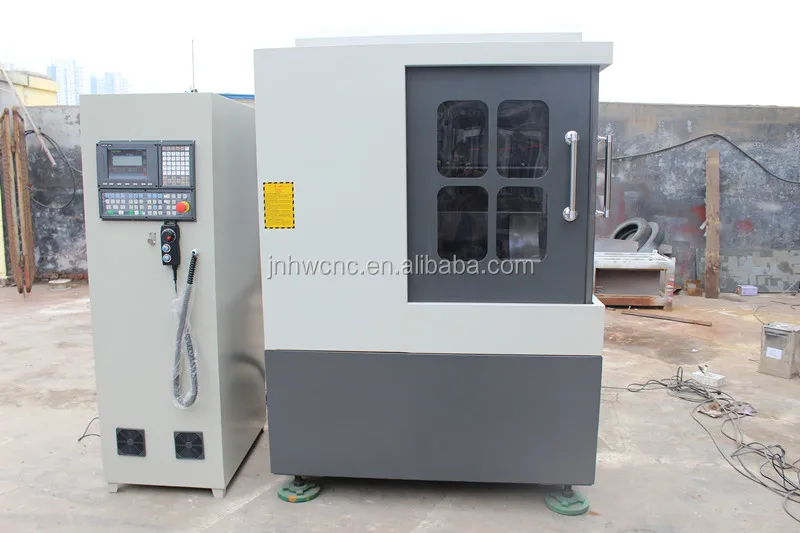

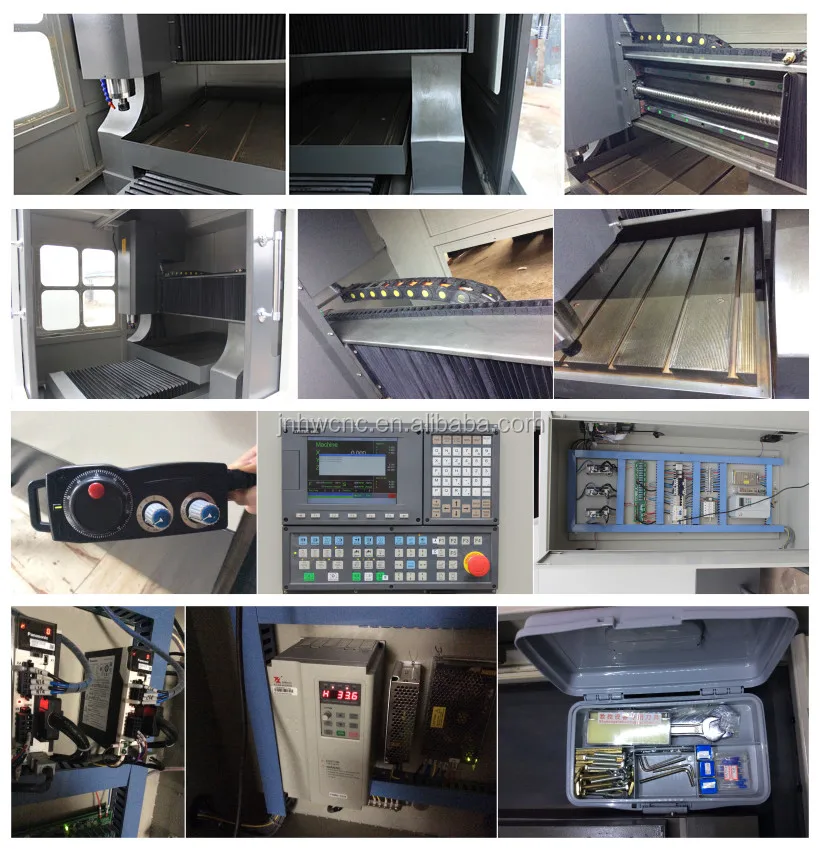

Detailed Images

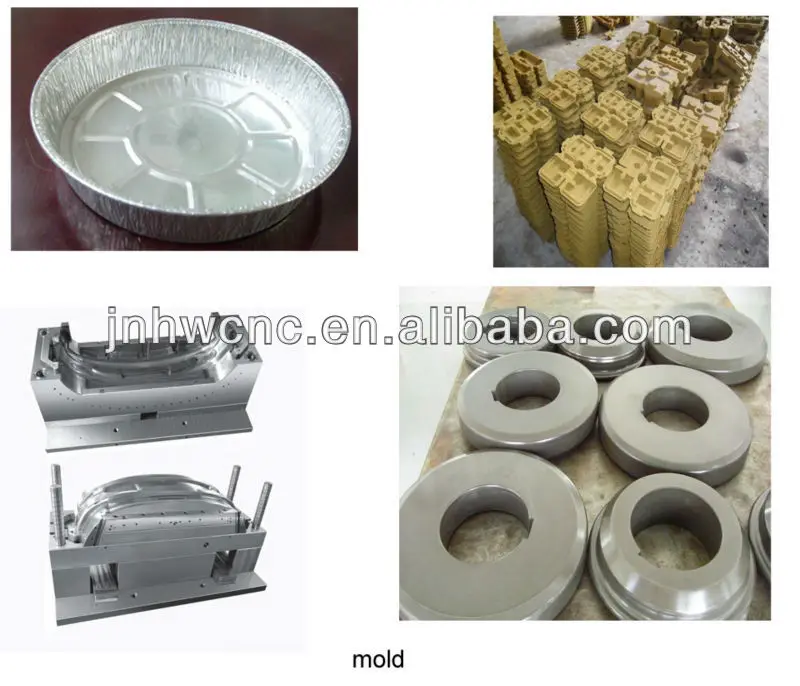

Samples
Certifications
Our Service

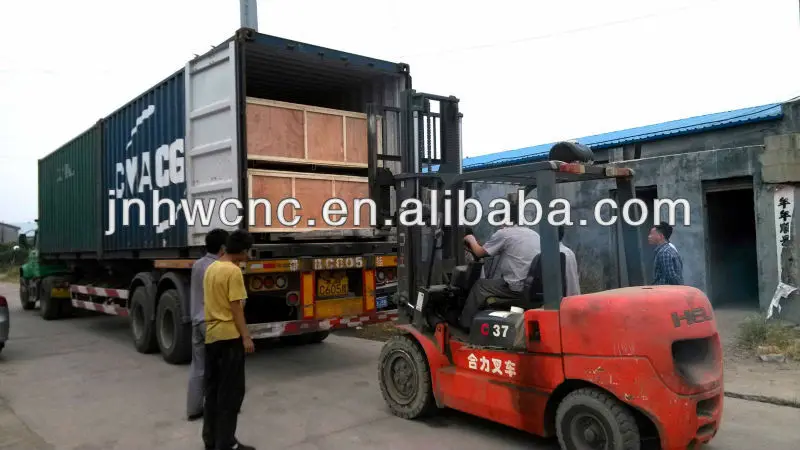

Packing & Delivery

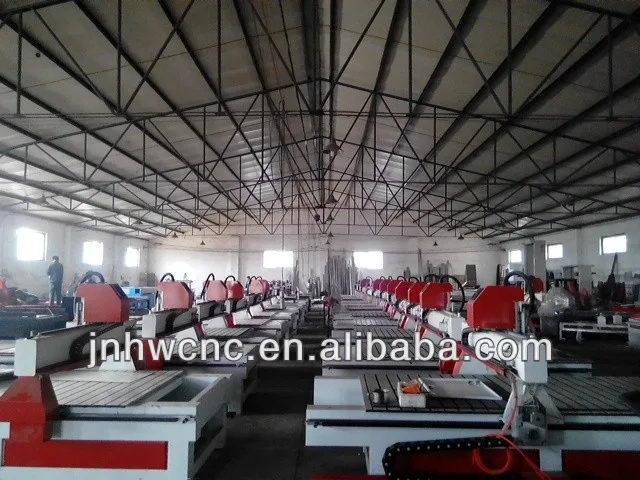

Our Company
JiNan Huawei CNC machine Co.,Ltd

JiNan Huawei CNC machine Co.,Ltd specilized in raising the R&D capabilities of cnc & laser machine and engages to be the leading specialized company in the industry
Established in 2002, we have a professional team of unity, skill and strong sense of responsibility, having over 10 years experience, we create a set of precise and elegant engraving skills with modern high-tech means and advanced digital technology
